Toyota Hi-Lux Pickup Truck Double Cab Series MK6 10-2005 – 07-2016
Sale

Toyota Hi-Lux Pickup Truck Double Cab Series MK6 10-2005 – 07-2016

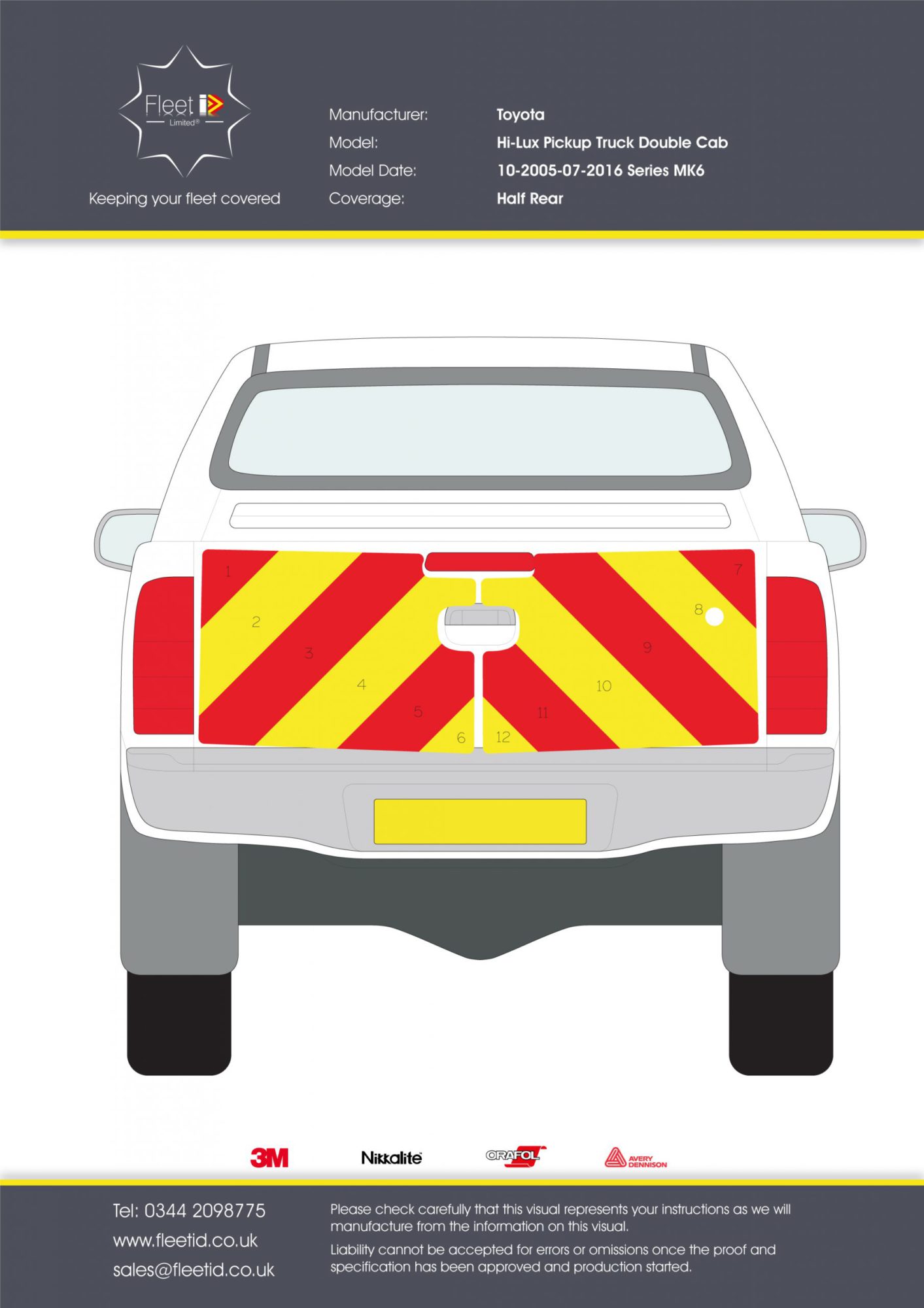

Chapter 8 chevron kit for a Toyota Hi-Lux Pickup Truck Double Cab Series MK6 10-2005 – 07-2016 half rear. Simply choose the material and kit type you require from the options below.

Secure payments

Cards we accept

Fleet ID Blazon Vehicle Text

Add vehicle text to your Chapter 8 kit here. Choose from the text options below:

Secure payments

Cards we accept

Fleet ID Blazon Related Products

Keep your fleet moving and ready for work with Fleet ID Blazon related products. You'll find everything here from lightbars to Chapter 8 temporary signage.

Secure payments

Cards we accept

Product Details

Description

Chapter 8 chevron kit for a Toyota Hi-Lux Pickup Truck Double Cab Series MK6 10-2005 – 07-2016 half rear. Each chevron kit can be supplied as a planked, flooded separate, flooded applied or magnetic kit. They are fully numbered and delivered with an application guide for easy fitting.

Delivery

In order to provide the best products and service possible, all Chapter 8 chevron kits from Fleet ID are made to order. The following delivery options are available:

  • Standard delivery – up to 5 working days (ordered before 12pm)
  • Express 1 – delivered to you within 48hrs (£50)
  • Express 2 – delivered to you within 72hrs (£35)

*All up to 5 kits

Longer standard delivery times apply to larger orders, but if you require any of your Chapter 8 chevron kits on a quicker turnaround than the standard delivery, please contact us on 0344 2098775 so we can accommodate your requirements.

After ordering your Chapter 8 chevron kits, you will receive order updates via email, keeping you informed on the progress of your order.

Which material should you choose?

Your Chapter 8 chevron kits can be manufactured from 3M Diamond Grade Microprismatic Red (4092) R3B, Nikkalite Crystal Grade Microprismatic CVF Red (92805) R3B, Nikkalite FEG Engineering Grade, Oralite 5200 Rapid Air or Oralite 6900 Brilliant Grade Microprismatic Red (030) R3B.

The reflective material that you choose for your Chapter 8 kit depends where the vehicle or vehicles will be used and whether they need to be R3B compliant. To check whether you need R3B compliant Chapter 8 kits for your fleet, check out our R3B compliancy page for further details (find it in the yellow hamburger menu at the top of this page).

All reflective materials have different levels of reflectivity, which is measured on a ‘light back to source’ basis – meaning how much of the light will be reflected back to the original light source. The guide below shows which of the reflective materials we supply are R3B compliant:



Reflective material R3B compliant R3B non-compliant
3M Diamond Grade Microprismatic Red (4092)
Nikkalite Crystal Grade Microprismatic CVF Red (92805) R3B
Nikkalite FEG Engineering Grade
Oralite 5200 Rapid Air
Oralite 6900 Brilliant Grade Microprismatic Red (030)



Choosing your kit type and coverage

We have a number of Chapter 8 kit options available, in terms of both application type and coverage type. You can choose from the following kit types:



Planked kit – each reflective strip and each fluorescent strip is cut and supplied taped together in small sections. Each strip is numbered individually, corresponding to the application guide supplied with your kit. Please retain your application guide for future reference (for ordering replacement panels in the event of damage).



Flooded kit – the reflective strips are cut individually and the fluorescent yellow areas are supplied as larger panels. When applying this type of kit, apply the yellow part first, covering a section of the vehicle and then apply the reflective strips over the top, leaving the required gaps between each strip.



Flooded applied kit – similar to the flooded kit, this works in larger sections. We provide the fluorescent yellow panels, with the red reflective strips already applied to them.



Magnetic kit – just as it sounds, this kit is supplied with the fluorescent yellow and red reflective already applied to magnetic panels. This is ideal for anyone that only needs the Chapter 8 kit applied to their vehicle only at certain times and for certain usage.



The amount of coverage is completely your choice – there are no guidelines or rules to follow on this. The coverage types are shown below:

For any advice on fitting Chapter 8 chevron kits, please do not hesitate to contact us. Alternatively, we have a professional fitting service available – please contact us for details.
